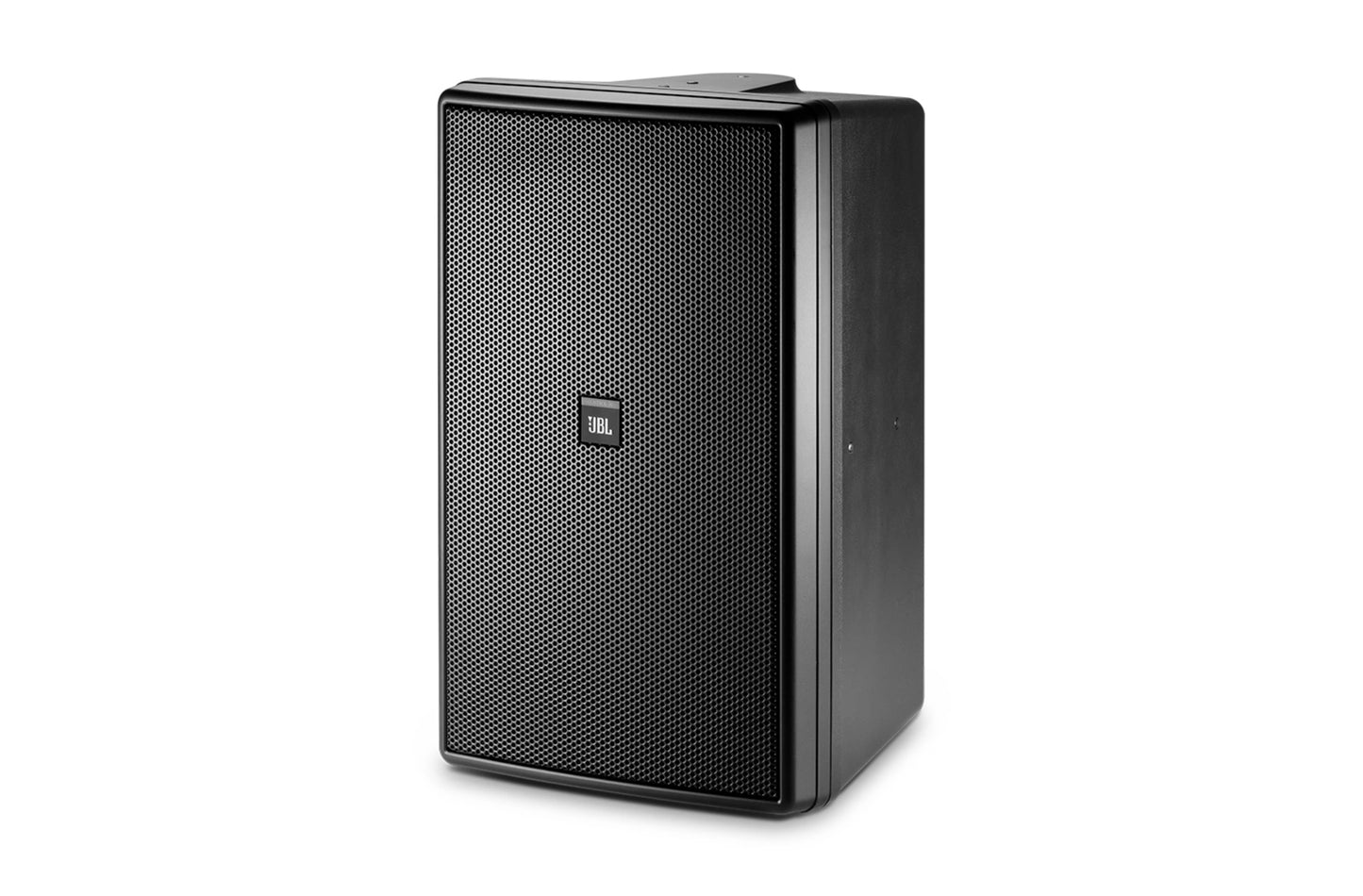

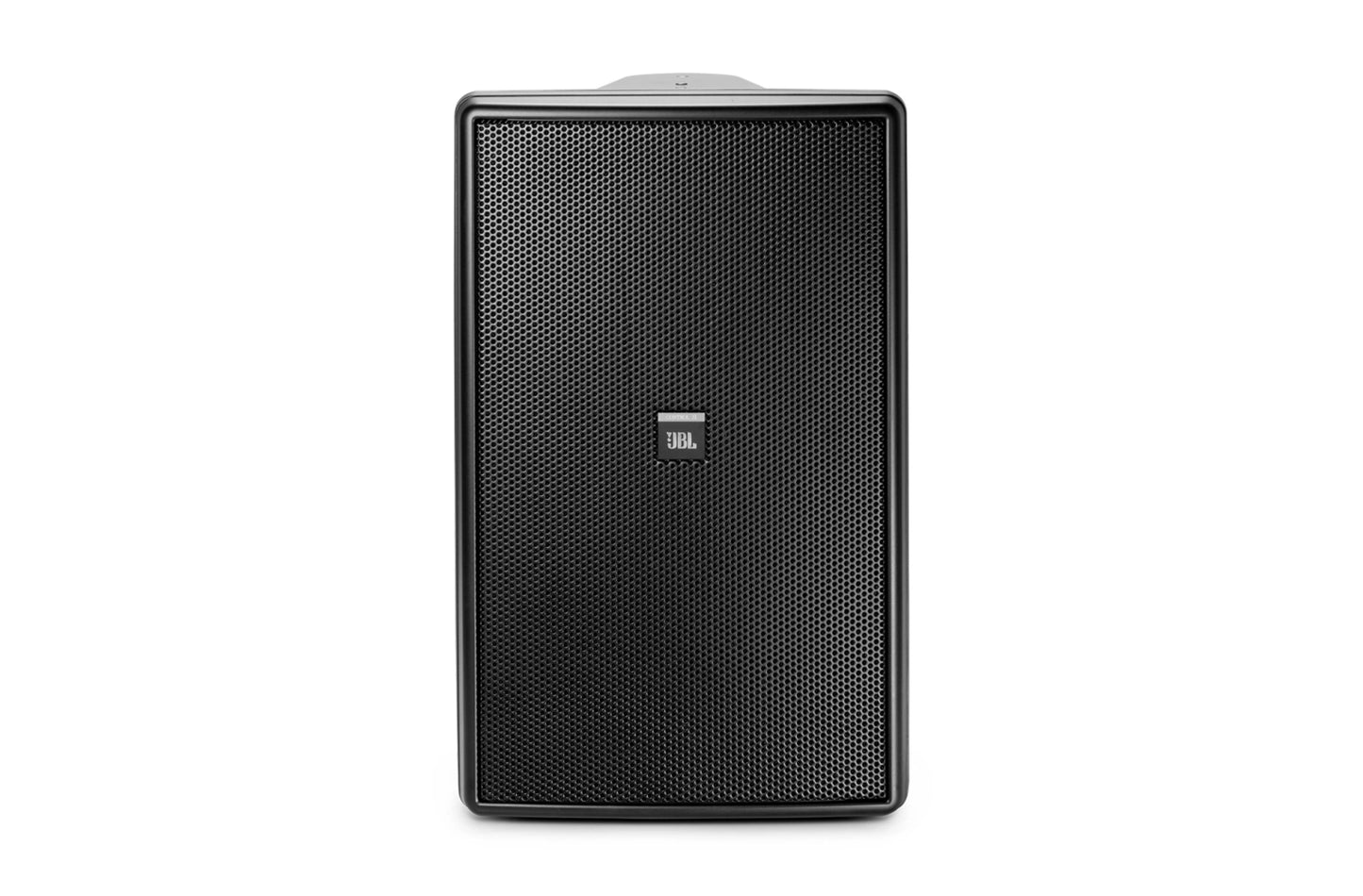

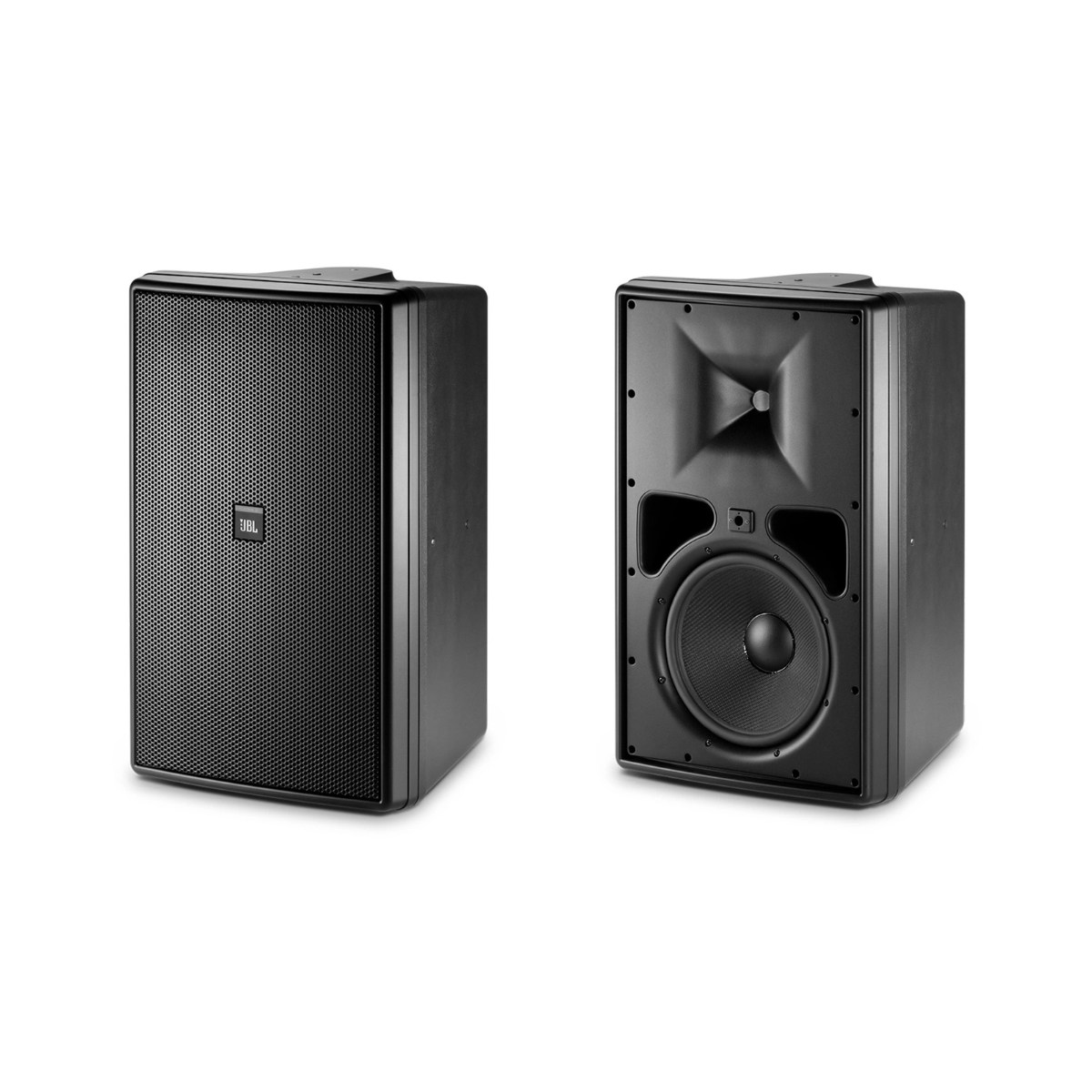

JBL Control 31 Wall-mount Speaker Hong Kong Licensed

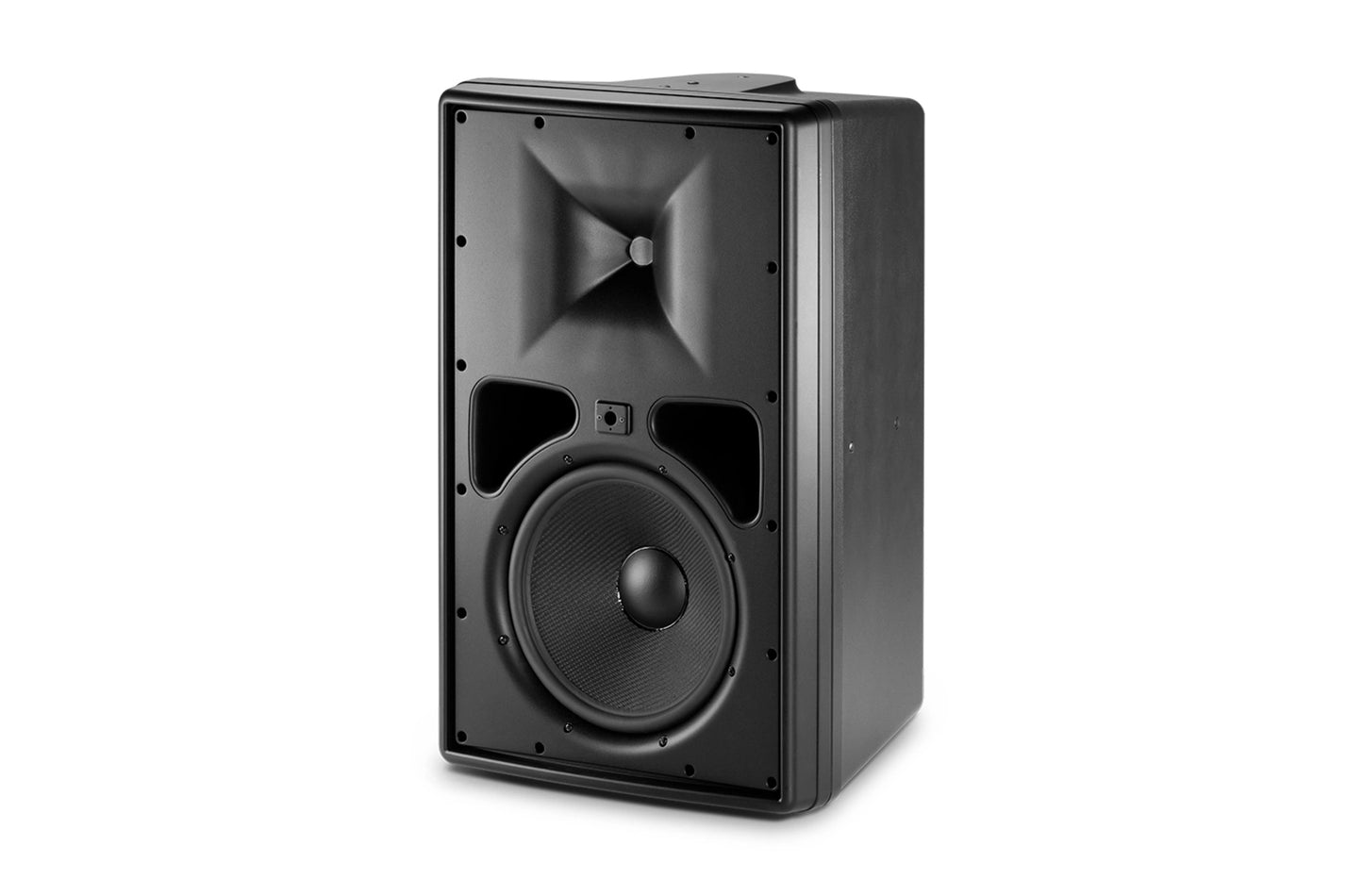

The Control 31 features a 250 mm (10 in) fiberglass cone low-frequency driver with a 52 mm (2 in) voice coil and a high-output 2414H-C compression driver with a 25 mm (1 in) outlet, patented design, and high-temperature polymer diaphragm. It handles 250 W (1000 W peak) for 2 hours and 200 W (800 W peak) for 100 hours. A built-in 150 W transformer with 8Ω bypass is available for 70V or 100V distribution lines. It offers a wide, remarkably smooth frequency response. Highly outdoor-capable, it includes a WeatherMax™ multi-layer grille and an optional marine-grade grille for use in salt air environments. It provides 110° x 110° symmetrical coverage. InvisiBall® mounting hardware and ten 6 mm attachment points for hanging and an optional U-bracket are included. A sealed input panel cover and screw input terminals ensure a secure connection. Rounded edges reduce the risk of scratches.

Frequency range (-10dB): 33Hz – 19kHz
Frequency response (±3 dB): 42Hz – 14kHz
Power rating: 250 W (1000 W peak), 2 hours; 200 W (800 W peak), 100 hours Maximum SPL (1m): 116 dB continuous (123 dB peak)
Sensitivity: 92 dB
Coverage Angle: 110° H x 110° V
Directivity Factor (Q): 5.7 (average 500 Hz to 10 kHz)
Directivity Index (DI): 7.3 dB (average 500 Hz to 10 kHz)
Impedance: 8 ohms Crossover Type: 2nd order low-pass, 2nd order high-pass, plus conjugate shaping circuitry Transformer Taps: 70V: 150W, 75W, 38W, 19W 100V: 150W, 75W, 38W Insertion Loss: <0.65 dB at any tap setting Thru Setting: 8Ω Nominal Recommended High-Pass: Protected 40 Hz high-pass (24 dB/octet) for any transformer tap and 8Ω operation Drivers: LF: 250 mm (10 in) fiberglass woven cone with pure butyl rubber frame, 52 mm (2 in) high-temperature fiberglass voice coil former, high-temperature voice coil wire, optimized cone geometry, linear suspension spider, FEA-optimized motor structure, pole post aluminum ring. High Frequency: JBL 2414H-C compression driver with 25 mm (1 in) diaphragm and voice coil diameter, high-temperature polymer diaphragm, JBL patented design, fluid cooling. Enclosure: High-impact polystyrene (HIPS) with 10% glass filling plus patent-pending internal 5 mm expanded polyurethane overmold for increased cabinet density. Grille: Galvanized steel with thermoset composite coating, WeatherMax™ multi-layer foam with tight-woven vapor barrier. Mounting Hardware: InvisiBall wall-mount system included. Ten 6 mm enclosure attachment points for hanging and optional U-bracket. One 6 mm secondary safety attachment point on the rear panel (for forged shoulder steel eyebolt, not included).
Outdoor Capability: IP-55 per IEC529. Exceeds MilSpec 810 for humidity, salt spray, temperature, and UV. Passes MilStd-202F for salt spray. Optional MTC-30MK marine-grade grille increases durability in highly corrosive environments. Input Connector: Screw terminal strip with zinc-plated copper base, gold-over-nickel-plated metal screws, and washers. Accepts up to 9 mm male and 4 mm female slits (#6, #8, or #10 prongs), plus bare wire (up to 12 AWG / 2.5 mm²).
Safety Agency: Transformer complies with UL1876
Color: Black (RAL9004) or White (-WH, RAL9003)
Dimensions (H x W x D): 593 x 372 x 345 mm (23.3 x 14.6 x 13.5 in)
Net weight (each): 18.8 kg (41.5 lbs)
Shipping weight (each): 22.0 kg (48.5 lb)
Included accessories: One MTC-PC2 input panel cover, InvisiBall wall mount system, 6 mm x 305 mm InvisiBall hex key. Optional accessories: MTC-30MK marine-grade grille in black or white (-WH), includes protective covers for grille and bezel screws. MTC-30CM (&-WH) ceiling-mount InvisiBall adapter for mounting speakers from the ceiling downward. MTC-30UB (&-WH) U-bracket.
