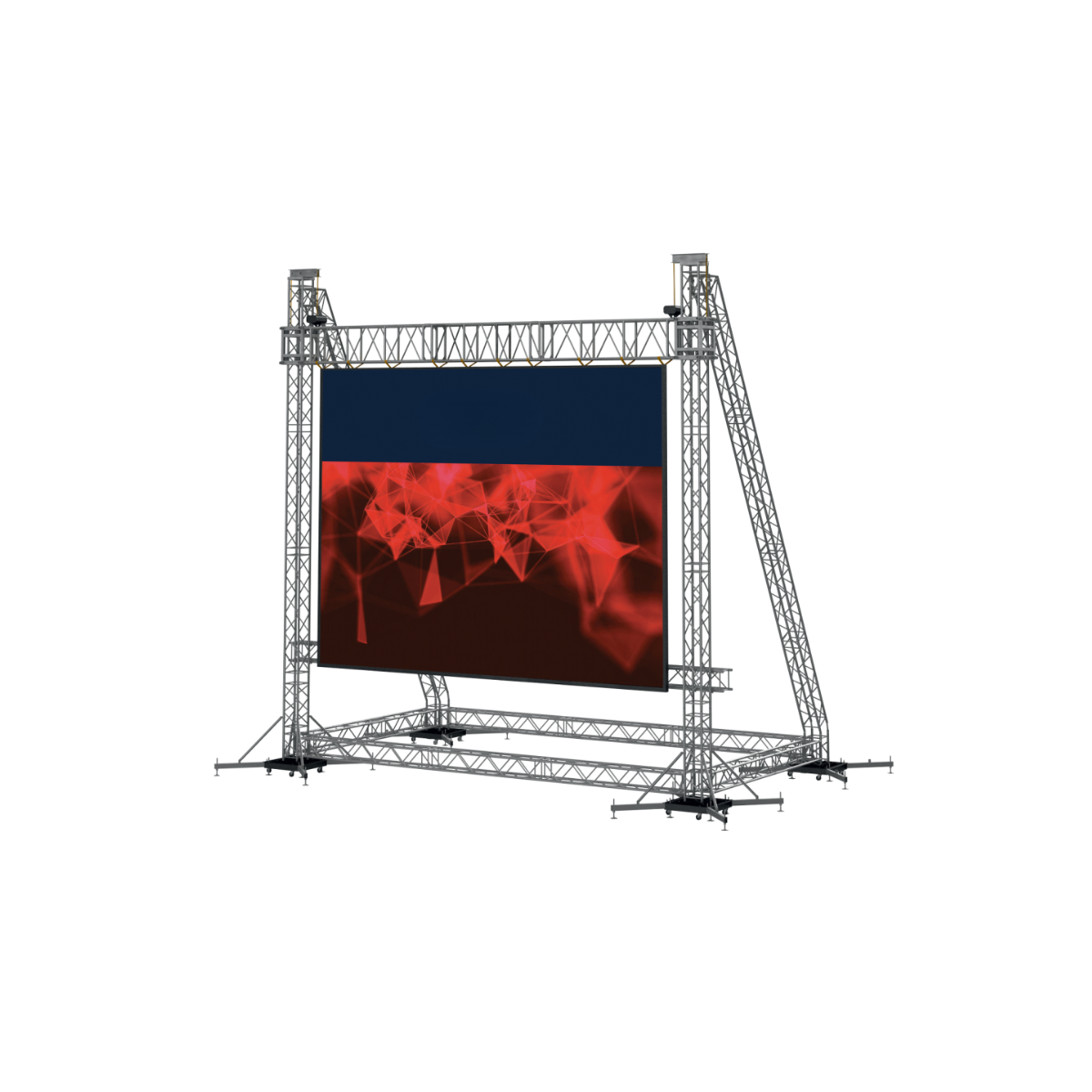

LED Frame 3 screen support truss system

LED Frame 3 is the largest standardized LED screen floor support structure in our product range and can accommodate screens up to 8 x 6 meters (26.2 x 19.7 feet) with an area of ​​48 square meters. To ensure safety, necessary safety truss beams were added to the bottom of the structure to secure the screens, with a maximum load-bearing capacity of 3,000 kg (6,614 lbs). The vertical supports are made of standard Tower 2 components, and the bottom uses FT44 truss to create a stable foundation. The structure consists of several special parts to ensure accurate assembly according to design and calculation.

Product Features and Advantages

• One-stop sales and installation : Provide LED Frame 3 sales and professional installation to ensure a safe and stable structure.
• RSE Structural Safety Report : A safety report issued by a registered structural engineer (RSE) can be attached to meet the requirements of Hong Kong activity permit.
• German TÜV standard certification : Passed strict TÜV quality testing and comes with an official certificate to ensure durability and safety.
• Maximum screen size : supports 8 x 6 meters (26.2 x 19.7 feet), an area of ​​48 square meters.
• Maximum load capacity : 3000 kg (6,614 lbs), suitable for extra-large display equipment.
• Complete kit : includes Tower 2 kit (vertical support), FT44 truss (base), bottom safety truss beam and special assembly parts.
• High visibility design : Maximum height of 10.2 meters (33.5 feet) ensures long-distance visibility.
• Solid structure : With a total weight of 1200 kg (2,646 lbs), it can effectively resist load and wind forces.
• Applicable for indoor and outdoor use : flexibly applied to various activity environments.
• CE certification : meets European safety standards and has reliable quality.

Technical specifications

Contact us now to customize your LED Frame 3 screen support system to enhance your visual effects!
