Tower 05 Light Light Tower System Truss
Tower 05 Light Light Tower System Truss
Easy installation

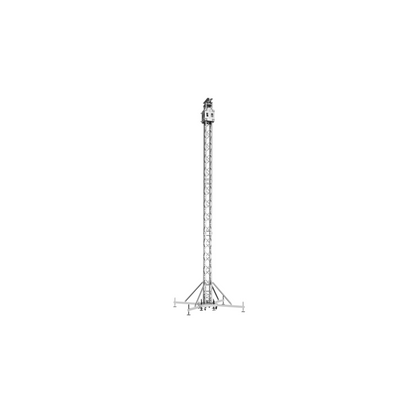

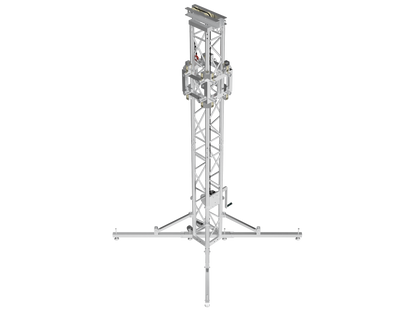

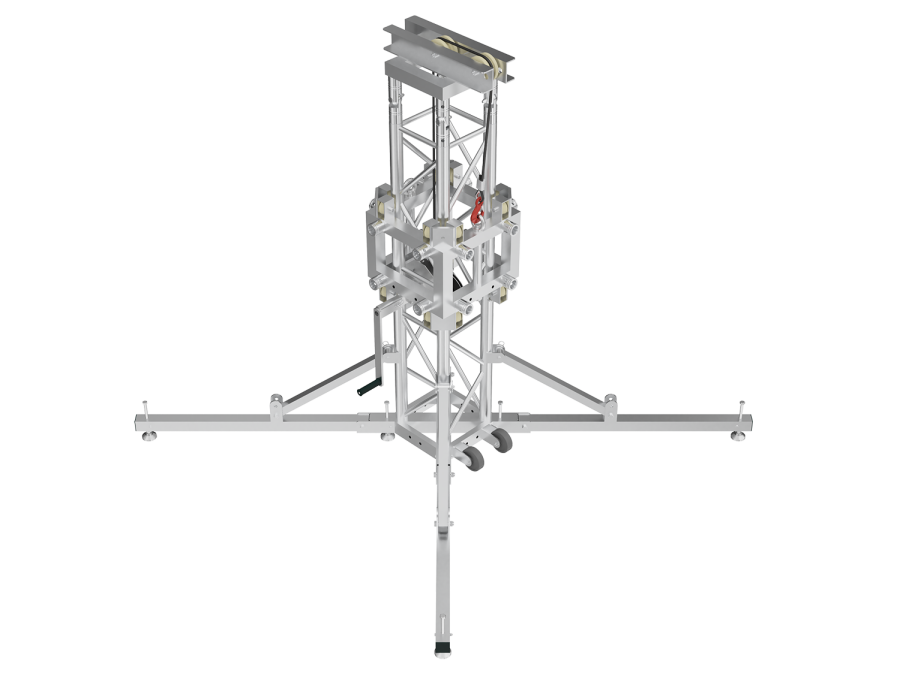

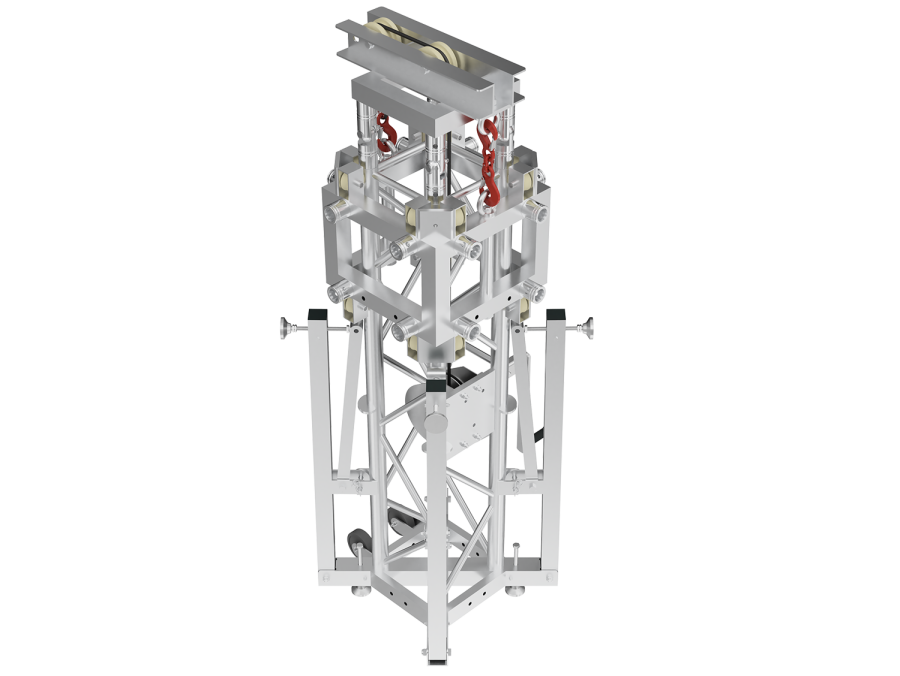

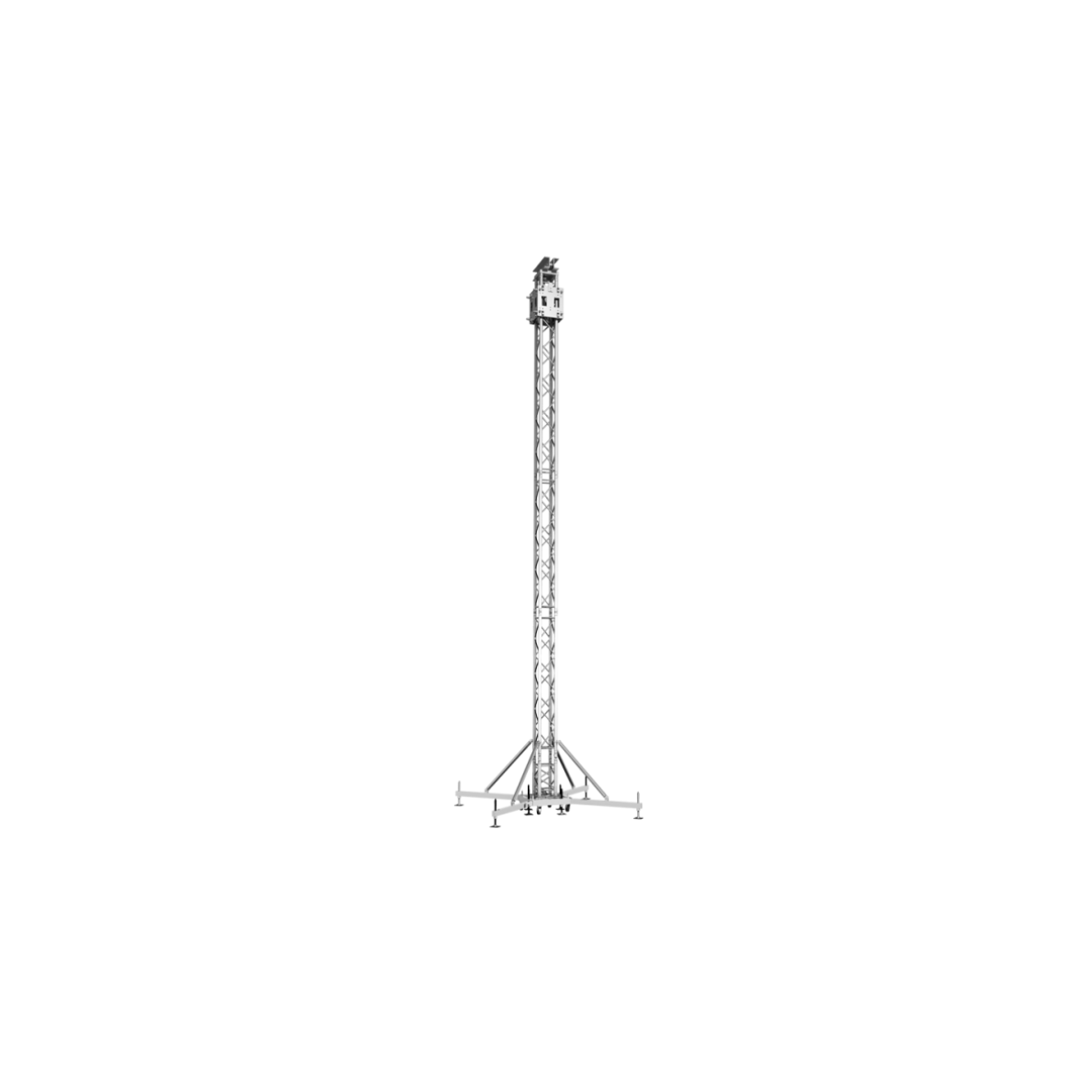

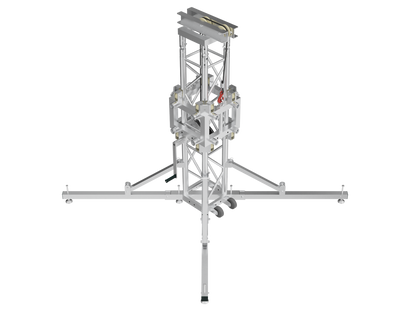

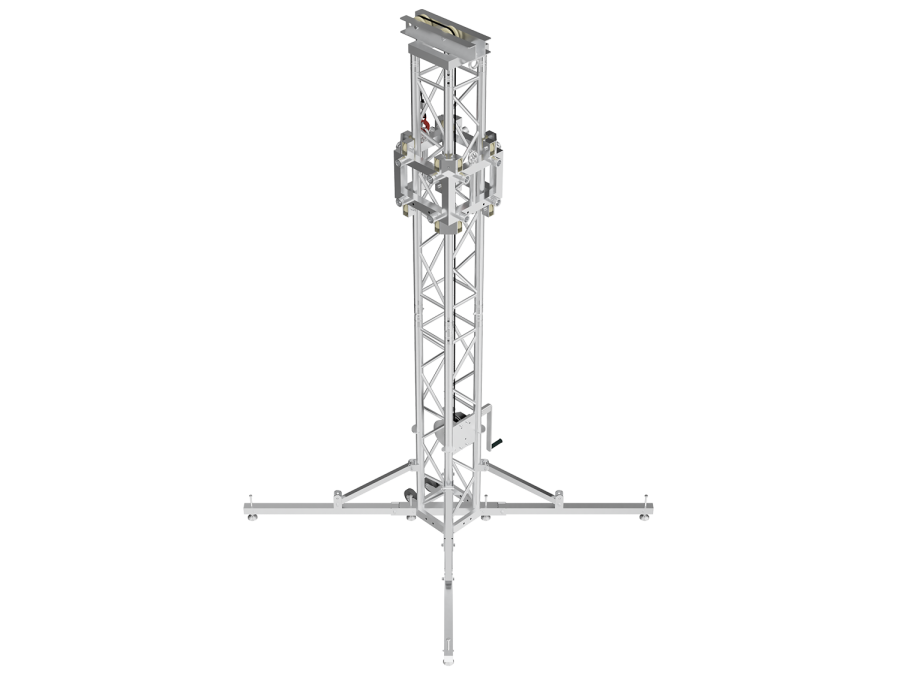

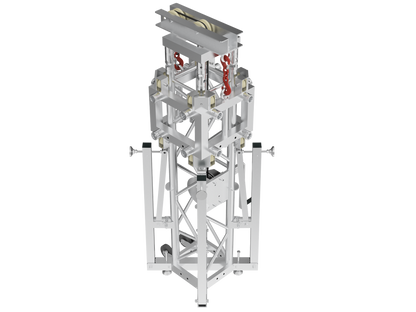

Tower 05 is a lightweight lighting tower system using straight HT34 truss components, designed for small roof systems and elevated truss grids. The system comes with a one-piece aluminum base that includes support feet, HT34 truss, sleeve block and top assembly, and comes with wheels for easy mobility. Installation is simple, just unfold the base and place the truss on top, no additional accessories required. Equipped with a steel rope hand winch, it is suitable for a variety of indoor and outdoor application scenarios and is an ideal choice for small events and exhibitions.
Product Features and Advantages
- One-stop sales and installation : Provide Tower 05 sales and professional installation services to ensure the safety and stability of the structure.
- RSE Structural Safety Report : A safety report issued by a registered structural engineer (RSE) can be attached to meet the requirements of Hong Kong activity permit.
- German TÜV standard certification : Passed strict TÜV quality testing and comes with an official certificate to ensure durability and safety.
- Lifting height : 6.5 meters (21.3 feet), flexible to cope with various scenarios.
- Maximum load capacity : 500 kg (1,100 lbs), suitable for small roofs and truss grid lifts.
- Complete kit : includes HT34 truss, aluminum base, support feet, hinges, sleeve blocks, top assembly and steel rope hand winch.
- Multi-directional connection : The welding sleeve block supports FT/HT/TT34 series truss four-way connection and is compatible with a variety of clamps (8001 to 8037 models).
- Quick installation : Quicklock connection system, including connector, pin and safety clip, for efficient installation.
- Suitable for indoor and outdoor use : Stable structural design, adaptable to different environments.
New upgraded features
- Rotating steel feet : Lateral rotation design adapts to a variety of surfaces and improves leveling stability.
- Adjustable support rod : enhances overall stability and ensures safety.
- Optimized sleeve block : improved design, smoother movement, and enhanced operating experience.
- Multi-hole accessory installation : Two holes are set on each side of the sleeve block (eight holes in total) to facilitate accessory installation.
- Chain Hoist Attachment Point : Top assembly supports chain hoists, extending the range of applications.
- CETAF static certification : meets international safety standards, with optional powder coating treatment, durable and beautiful.
Technical specifications
Deadweight | Lifting height | Load-bearing capacity |
---|---|---|
100 kg (220.5 lbs) | 6.5 m (21.3 ft) | 500 kg (1,102 lb) |
Quality and safety assurance
Tower 05 is certified to German TÜV standards with an official certificate and can provide an RSE structural safety report to ensure compliance with Hong Kong event safety requirements. Choose us and enjoy professional installation and reliable quality!
Contact us now to customize your Tower 05 lighting tower system to create the perfect stage effect!
