Flight Truss
TOWER 1 Lighting Truss Tower System
TOWER 1 Lighting Truss Tower System
Efficient solutions

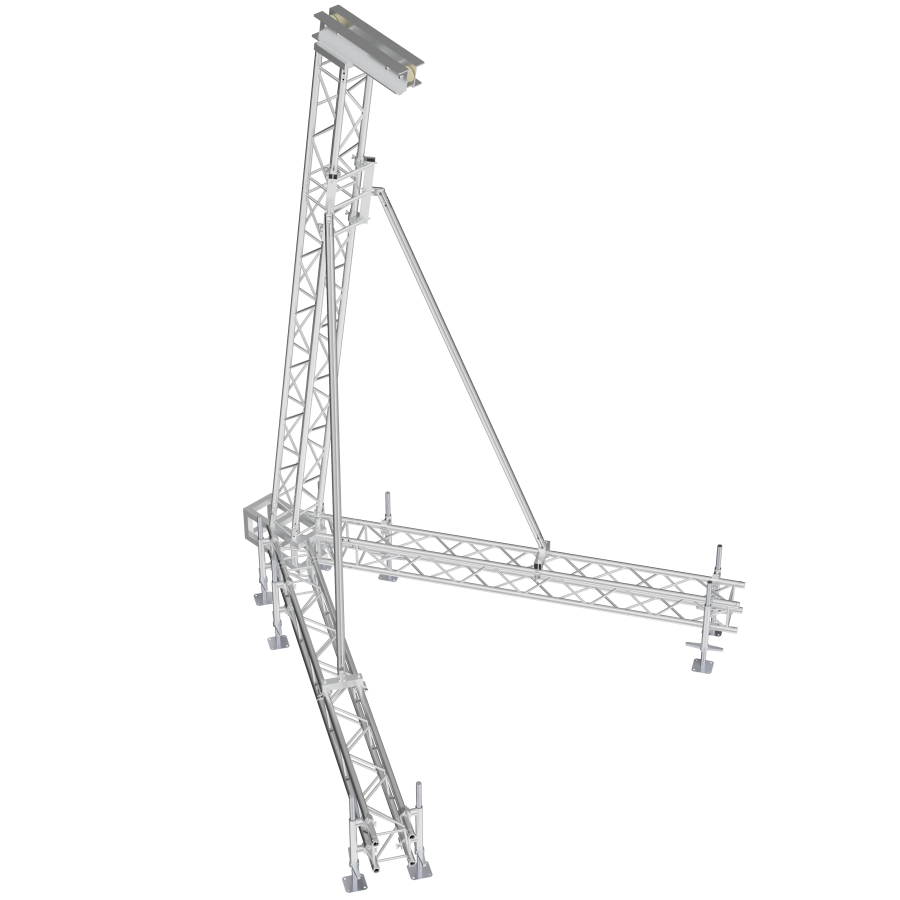

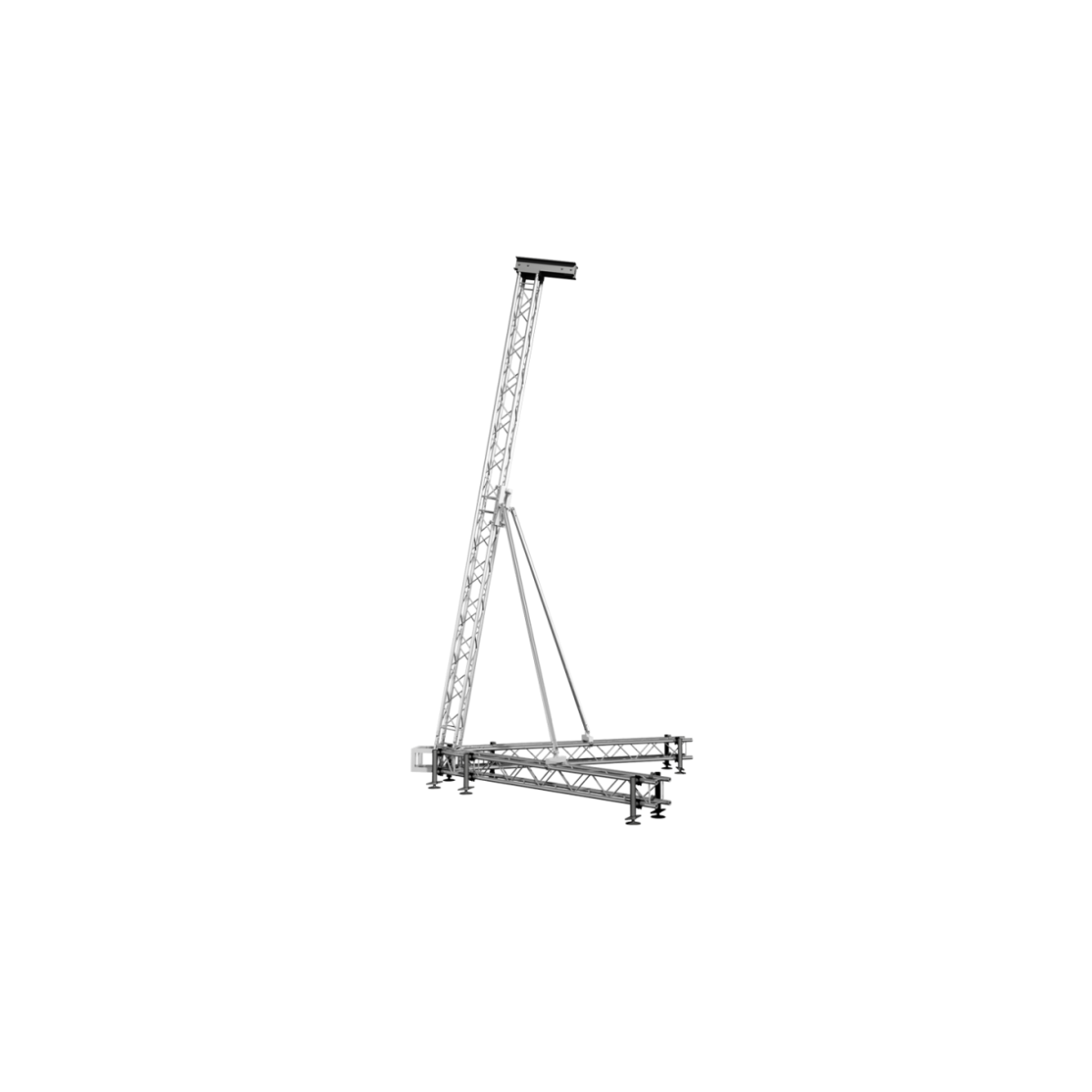

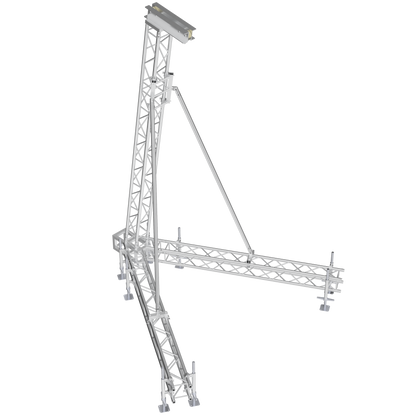

PA Tower is a medium sized audio tower system constructed from aluminium TT34 truss components and comes with all the parts needed for quick installation. The structure includes a 60° base angle, vertical stabilizing tube, hinge, top assembly, connecting rod, screw jack and truss accessories, suitable for line array speaker tower installation. As the core element of live event sound engineering, PA Tower can be set up independently of the main stage and is suitable for various indoor and outdoor occasions to bring the audience a perfect sound experience.
Product Features and Advantages
- One-stop sales and installation : Provide PA Tower sales and professional installation services to ensure the safety and stability of the structure.
- RSE Structural Safety Report : A safety report issued by a registered structural engineer (RSE) can be attached to meet the requirements of Hong Kong activity permit.
- German TÜV standard certification : Passed strict TÜV quality testing and comes with an official certificate to ensure durability and safety.
- Maximum lifting height : 6.6 meters (21.65 feet), meeting various audio layout requirements.
- Maximum load : 800 kg (1,764 lbs), suitable for medium-sized audio equipment.
- Complete kit : includes TT34 truss, 60° base angle, stabilizer tube, hinge, top assembly, connecting rod and screw jack and accessories.
- Multi-directional connection : compatible with a wide range of clamps (models 8001 to 8037), complete truss segment connection kit included.
- Quick installation : Quicklock connection system, standard pins and safety clips, efficient and convenient installation.
- Suitable for indoor and outdoor use : flexible design to adapt to different activity environments.
- CE certification : meets European safety standards, optional powder coating treatment, durable and beautiful.
Technical specifications
| Deadweight | Overall height | Maximum lifting height | Load-bearing capacity |
|---|---|---|---|
| 236 kg (520.3 lbs) | 6.82 m (22.38 ft) | 6.6 m (21.65 ft) | 800 kg (1,764 lb) |
Quality and safety assurance
PA Tower is certified by German TÜV standards with an official certificate and can provide an RSE structural safety report to ensure compliance with Hong Kong event safety requirements. Choose us and enjoy professional installation and reliable quality!
Contact us now to customize your PA Tower system to enhance the live sound effects!
