LED Frame 1 screen support truss system
LED Frame 1 screen support truss system

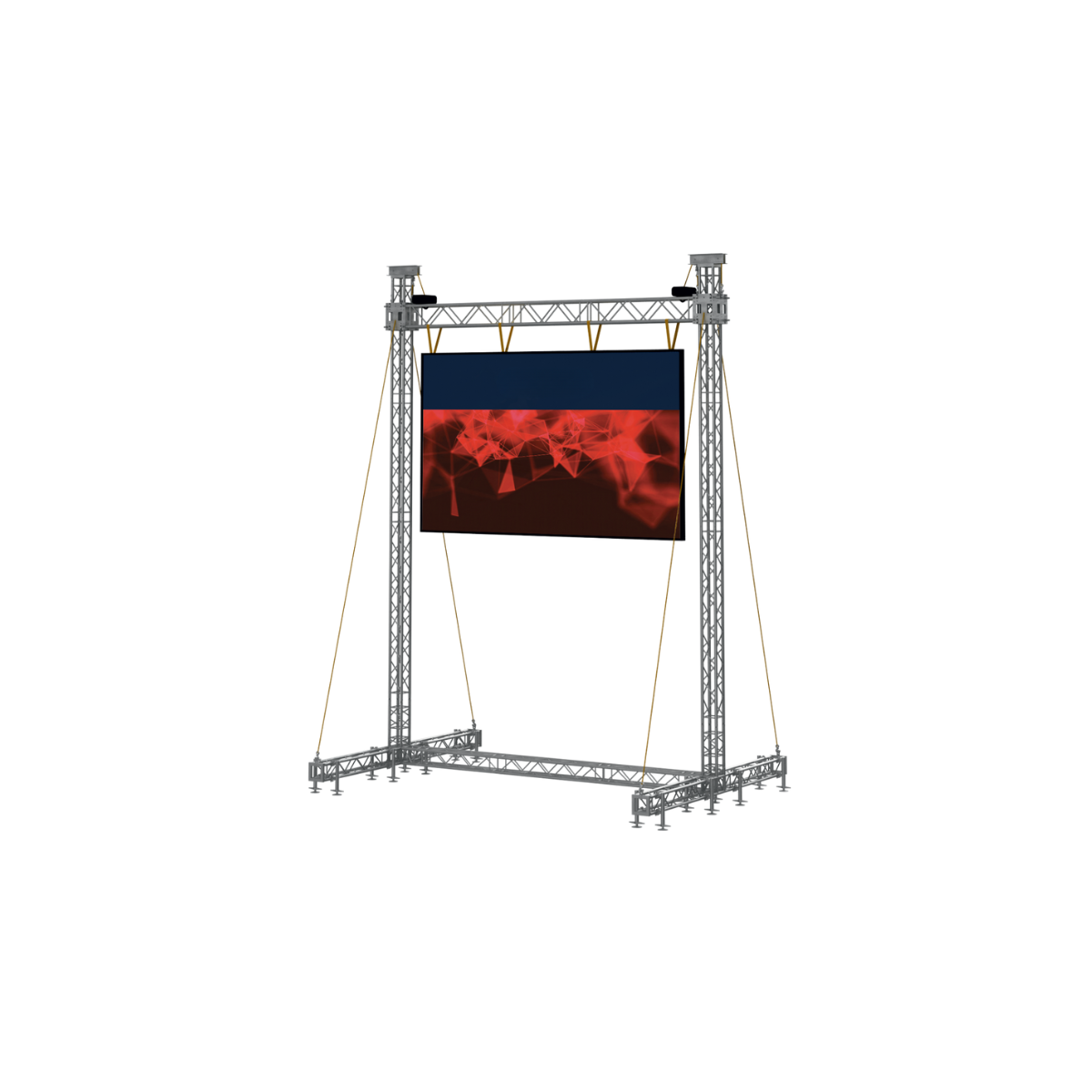

LED Frame 1 is the first of three standard screen support structures designed to handle the loads and wind forces required to hang a 5 x 3 meter (16.4 x 9.8 ft) LED screen with a maximum weight of 1200 kg (2,645 lbs). This ground support structure uses Tower 1 components (TT34 truss, top assembly, sleeve blocks, etc.) for vertical support, FT44 truss for the horizontal top beam, and FT34 truss segments at the bottom to create a stable foundation. The total structure weight is 650 kg (1,433 lb), ensuring stability and safety.
Product Features and Advantages
- One-stop sales and installation : Provide LED Frame 1 sales and professional installation to ensure a safe and stable structure.
- RSE Structural Safety Report : A safety report issued by a registered structural engineer (RSE) can be attached to meet the requirements of Hong Kong activity permit.
- German TÜV standard certification : Passed strict TÜV quality testing and comes with an official certificate to ensure durability and safety.
- Maximum screen size : Supports 5 x 3 meters (16.4 x 9.8 feet) LED screens.
- Maximum load capacity : 1200 kg (2,645 lbs), suitable for large display equipment.
- Complete kit : includes TT34 truss (vertical support), FT44 truss (top beam), FT34 truss (base), top assembly and sleeve block.
- Robust design : The structure weighs 650 kg (1,433 lbs) and is designed to withstand wind and load forces.
- Applicable for indoor and outdoor use : flexibly applied to various activity environments.
- CE certification : meets European safety standards and has reliable quality.
Technical specifications
| Maximum size | Maximum screen size | Maximum height | Maximum load | Total weight of structure |
|---|---|---|---|---|
| 6.35 x 4.62 m (20.8 x 15.2 ft) | 5 x 3 m (16.4 x 9.8 ft) | 8.49 m (27.9 ft) | 1200 kg (2,645 lb) | 650 kg (1,433 lb) |
Quality and safety assurance
LED Frame 1 is certified by German TÜV standards and comes with an official certificate. It can also provide an RSE structural safety report to ensure compliance with Hong Kong event safety requirements. Choose us and enjoy professional installation and reliable quality!
Contact us now to customize your LED Frame 1 screen support system to enhance your visual effects!
