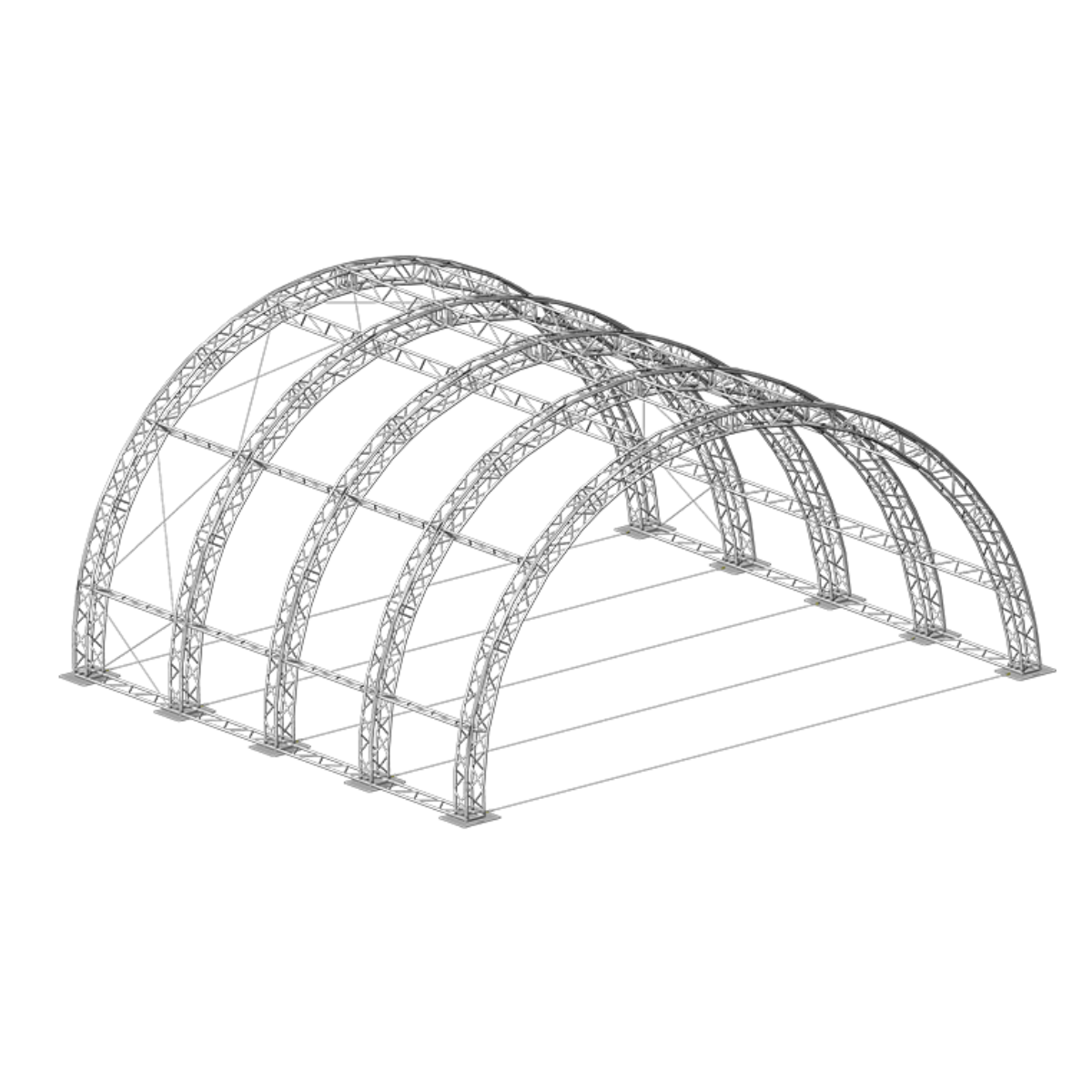

ROOF 12x12x6m ARC is a tunnel roof system consisting of five aluminium truss arcs, suitable for covering stages up to 11 x 11m (36.1 x 36.1ft). The tunnel design provides great flexibility for event management and performance planning, and the curved structure combines high clearance with extra-large load-bearing capacity. The arc-shaped truss is fixed to the steel base plate. The base plates are not only connected by trapezoidal trusses but also reinforced by steel ropes to form a stable whole. Optional keder profiles are welded to the curved sections, allowing the PVC canopy strips to slide in easily, protecting the stage from the sun, rain and wind.
The structure measures 12.5 x 12.5 m (41 x 41 ft) and is constructed using HT44 truss circular segments for the main arcs, interconnected by HT42 trapezoidal trusses and further reinforced by multiple steel cable guy wires to ensure stability.
Product Features and Advantages
- One-stop sales and installation : Provide ROOF 12x12x6m ARC sales and professional installation to ensure the safety and stability of the structure.
- RSE Structural Safety Report : A safety report issued by a registered structural engineer (RSE) can be attached to meet the requirements of Hong Kong activity permit.
- German TÜV standard certification : Passed strict TÜV quality testing and comes with an official certificate to ensure durability and safety.
- Stage Size : Fits 11 x 11m (36.1 x 36.1ft) stage with 4.6m (15.1ft) clearance.
- Ultra-high load-bearing capacity : Maximum load-bearing capacity is 10,000 kg (22,046 lbs), supporting heavy equipment suspension.
- Flexible configuration : optional PVC canopy or three-sided mesh canopy to adapt to different weather conditions.
- Stable design : HT44 curved truss with HT42 trapezoidal truss and steel ropes ensure a stable structure.
- Quick installation : Keder profile design, efficient canopy installation, easy assembly with HT truss system.
- Suitable for indoor and outdoor use : The structure is stable and safe to use with wind speed limit of 20 m/s (45 mph).
- CETAF static certification : meets international safety standards, with optional powder coating treatment, durable and beautiful.
Technical specifications
| Maximum size | Maximum stage size | Headroom | Maximum height | Maximum load | Total weight of structure |
|---|---|---|---|---|---|
| 12.5 x 12.5 m (41 x 41 ft) | 11 x 11 m (36.1 x 36.1 ft) | 4.6 m (15.1 ft) | 6.07 m (21.98 ft) | 10,000 kg (22,046 lb) | 2150 kg (4,739 lb) |
Quality and safety assurance
ROOF 12x12x6m ARC is certified by German TÜV standards and comes with an official certificate and RSE structural safety report to ensure compliance with Hong Kong event safety requirements. Choose us and enjoy professional installation and reliable quality!
