Stage Truss Roof Truss System ROOF 2 12x10m
Stage Truss Roof Truss System ROOF 2 12x10m

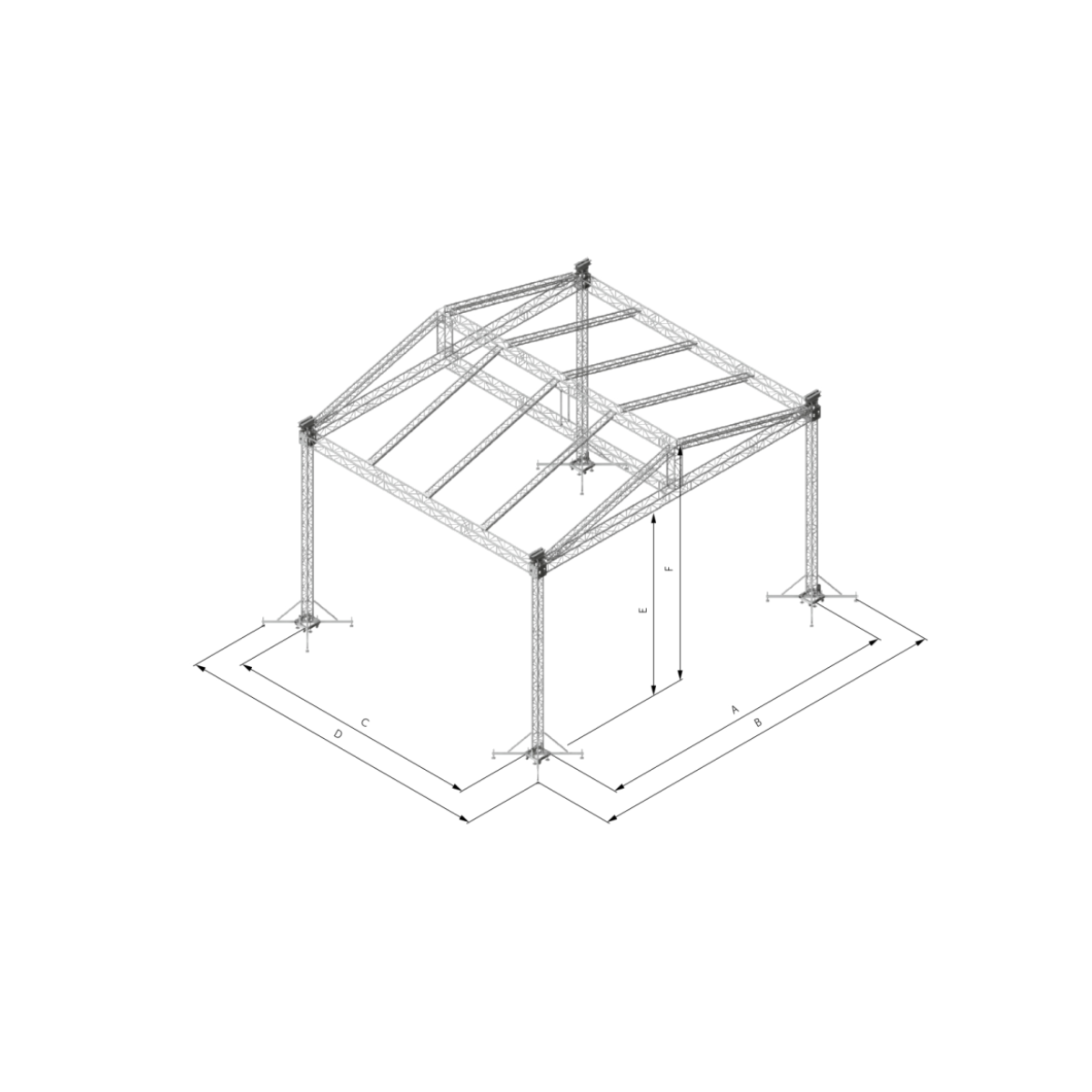

ROOF 2 12x10m is a gabled roof structure made of aluminum truss, widely used in temporary roof systems worldwide, suitable for covering stages up to 12 x 10 meters (39.37 x 32.81 feet) for small to large events. Its versatility, strength and moderate size make it popular. The main grid is assembled on the ground and hoisted by the Tower 1 lifting system, making the installation efficient.
The main rectangular grid is FT44 truss, the front and rear rafters are FT34 truss, and the internal rafters are FT33 truss sections. The gabled roof is constructed from FT34 rafters with specially designed corner components to ensure structural stability. Three internal FT33 rafters are clamped to the main grid and top beams, with the rafters spaced 2.5 metres (8.2 feet) apart to ensure the canopy is supported and stable, avoiding water accumulation.
Product Features and Advantages
- One-stop sales and installation : We provide ROOF 2 12x10m sales and professional installation to ensure the safety and stability of the structure.
- RSE Structural Safety Report : A safety report issued by a registered structural engineer (RSE) can be attached to meet the requirements of Hong Kong activity permit.
- German TÜV standard certification : Passed strict TÜV quality testing and comes with an official certificate to ensure durability and safety.
- Stage Size : Fits 12 x 10m (39.37 x 32.81ft) stage with 7m (22.97ft) clearance.
- High load-bearing capacity : Total load-bearing capacity is 3500 kg (7,716 lbs), with 120 kg (81 lbs/ft) per meter of front and rear main beams and 35 kg (23.5 lbs/ft) per meter of side beams.
- Flexible configuration : optional PVC canopy or three-sided mesh canopy to meet different needs.
- Stable design : FT44, FT34 and FT33 truss combination with 2.5m spacing between rafters ensures stability and canopy support.
- Quick installation : The Tower 1 lifting system is equipped with Quicklock design, which makes installation efficient and convenient.
- Suitable for indoor and outdoor use : The structure is stable and safe to use with wind speed limit of 20 m/s (45 mph).
- CETAF static certification : meets international safety standards, with optional powder coating treatment, durable and beautiful.
Technical specifications
| Maximum size | Maximum stage size | Headroom | Maximum height | Maximum load | Total weight of structure |
|---|---|---|---|---|---|
| 14.5 x 12.5 m (47.27 x 41.01 ft) | 12 x 10 m (39.37 x 32.81 ft) | 7 m (22.97 ft) | 9.20 m (30.17 ft) | 3500 kg (7,716 lb) | 2040 kg (4,497 lb) |
Quality and safety assurance
ROOF 2 12x10m is certified by German TÜV standards and comes with an official certificate and RSE structural safety report to ensure compliance with Hong Kong event safety requirements. Choose us and enjoy professional installation and reliable quality!
Contact us now to customize your ROOF 2 12x10m roof system and enhance your event experience!
