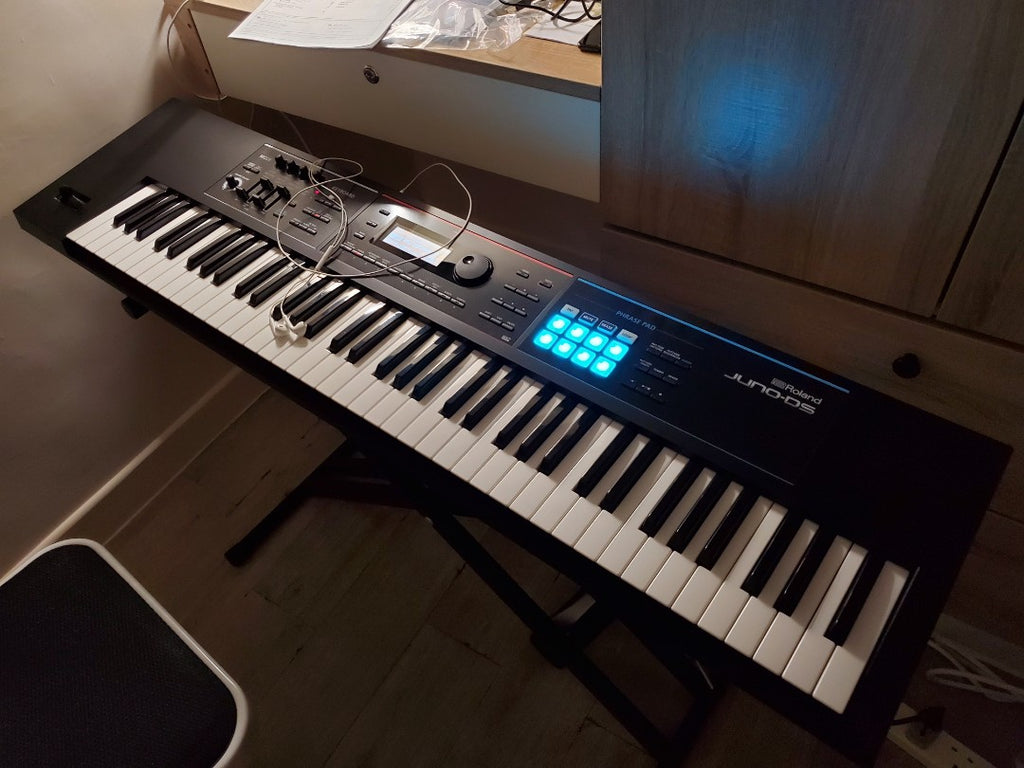

Roland JUNO-DS76 Performance Synthesizer

Lightweight 76- key performance synthesizer with excellent tone and intuitive operation, allowing the orchestra to show richer music

There must be an intense and fast-paced life for a budding musician or an ambitious new band. When you're running between rehearsals, meetings, and gigs, you don't have time for difficult, bulky, complex synths. The Roland JUNO-DS76 is a portable modern synth that can keep up with your busy orchestra life. Lightweight, compact and powerful, this 76- key instrument, Take it with you wherever you go, simple operation and instant access to professional built-in sound, so you can make or perform music whenever you want, whether in the studio or on stage. It has a wide-ranging keyboard that can split the keyboard to play a variety of sounds, suitable for performing more complex arrangements.

keyboard

keyboard

76 keys (with force sensitivity)

sound source

Maximum number of simultaneous voices

128 voices

voice

16 voices

preset memory

- sound (Patches): more than 1200 kinds

- Drum: More than 30 groups

- Performance (Performance): 64

* Contains GM2 compatible sounds.

user memory

- sound (Patches): 256

-Drums : 8

- Performance (Performance): 12

Wave Expansion Slot

1 expansion slot

*The waveform expansion slot is the rewritable and overwritten internal waveform memory. You can download data from the Axial sound library website and write to the internal waveform memory slot of the JUNO-DS76 via a USB flash drive.

Sample import function

file format

Audio file : WAV ( 44.1 kHz , 16 bits )

Supports multiple sampling (system version Ver. 2.00 or later, with JUNO-DS Tone Manager )

Effects

- multi-effect: The system 3, 80 kinds of

- harmony (Chorus): 3 Zhong

- reverberation (Reverb): 5 Species

- Microphone input reverberation : 8 types

Audio file player area

file format

Audio file : WAV , AIFF , MP3

other

Rhythm section (Rhythm Pattern)

Default : 30 groups x 8

Arpeggiator ( Arpeggio )

Default : 128

control device

Portamento / Vibrato Joystick

Control knob x 4

Grade Putter x 4

Multi-color pressing keys x 8

display

Graphic LCD 256 x 80 dots

external storage

USB flash drive (supports USB 2.0 Hi-Speed flash memory )

connection terminal

Sustain pedal jack

control pedal socket

MIC INPUT Microphone jack : 1/4 inch headphone type

EXT INPUT jack : Stereo miniature phone type

OUTPUT output jacks ( L/MONO , R ) : 1/4 inch phone type

PHONES headphone jack : Stereo 1/4 inch headphone type

MIDI connection terminals ( IN , OUT )

USB MEMORY port

USB COMPUTER port (supports USB MIDI/AUDIO )

DC IN jack

power supply

DC 9 V: AC adaptor or NiMH rechargeable battery ( AA , HR6 ) (sold separately) x 8

* Battery life under continuous use (varies according to usage conditions)

NiMH rechargeable battery : about 5 hours (when using 1900 mAh battery) ( Approx. 4 hours when USB flash drive is connected)

* Carbon-zinc or alkaline batteries cannot be used.

current

600 mA

Appendix

manual

File " USING THE UNIT SAFELY "

AC Transformer

power cable

Optional equipment

Keyboard stand( *1 ) : KS-18Z , KS-12

Switch pedal : DP series

Expression Pedal : EV-5

USB flash drive ( *2 )

*1 When using the KS-18Z keyboard stand, the height of the unit should not exceed one meter.

*2 Please use a USB flash drive that supports USB 2.0 Hi-Speed. We cannot guarantee that all commercially available USB flash drives will work.

size and weight

width h

1 , 231 mm

deep

311 mm

high

102mm

Weight (without AC transformer)

6.9kg
